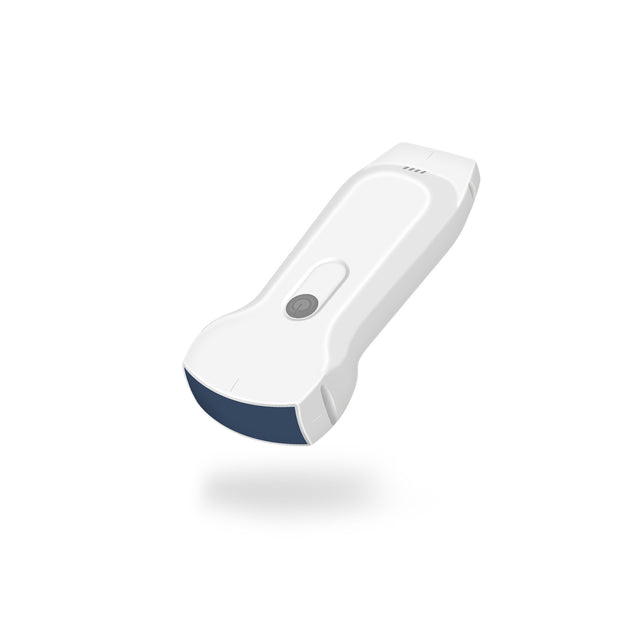

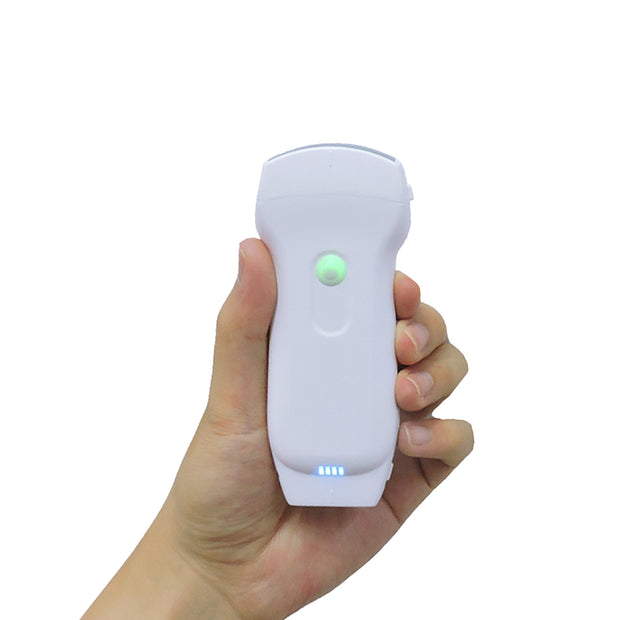

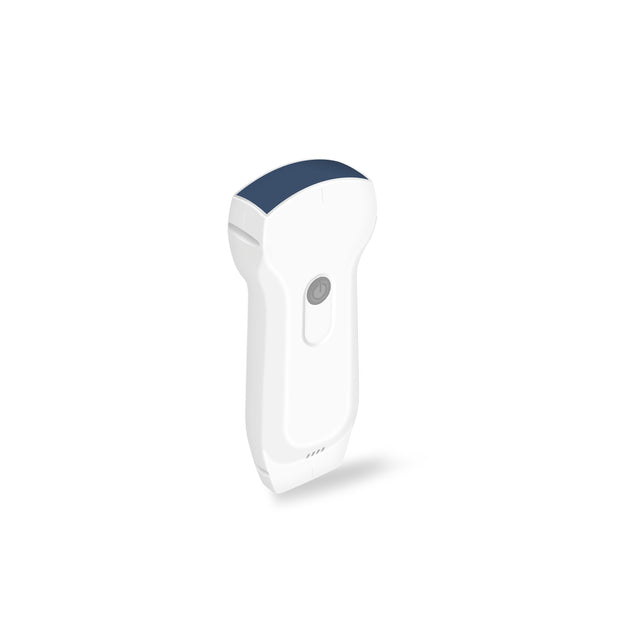

Portable Dolphin C10RL ultrasound probe
Dolphin C10RL dual-head ultrasound probe with WiFi

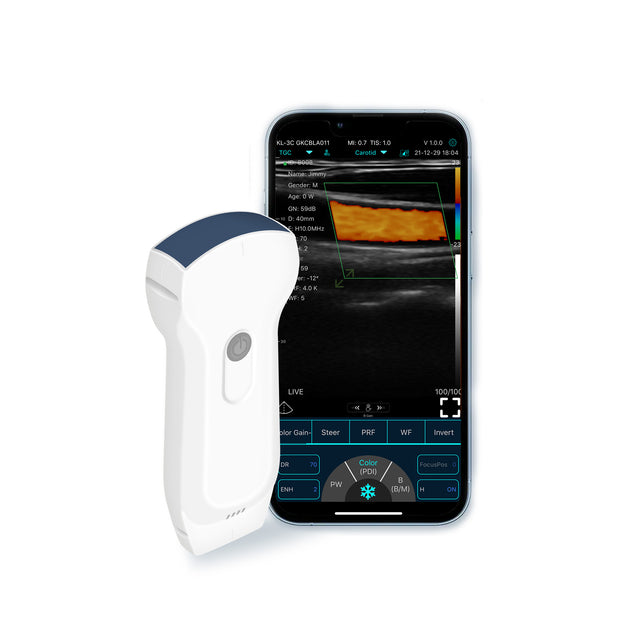

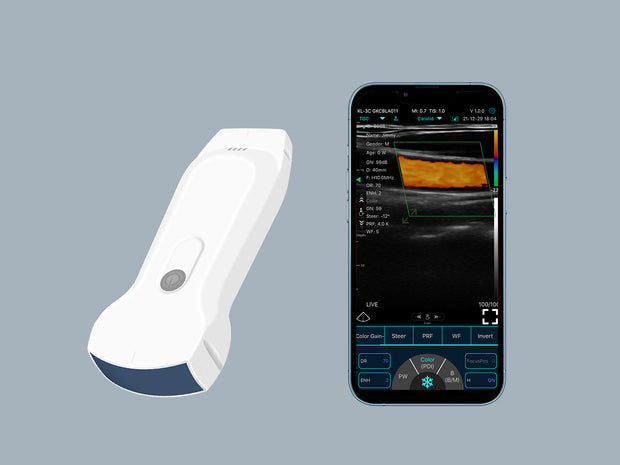

Dolphin C10RL wireless ultrasound

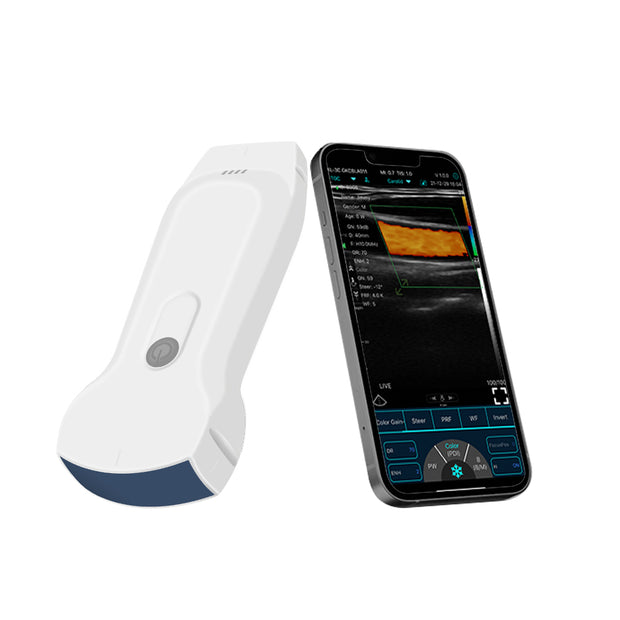

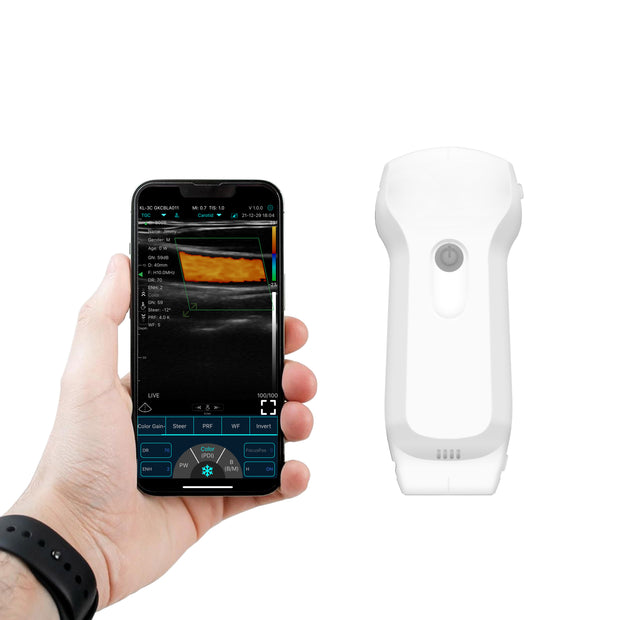

Lightweight Dolphin C10RL ultrasound scanner next to iPhone

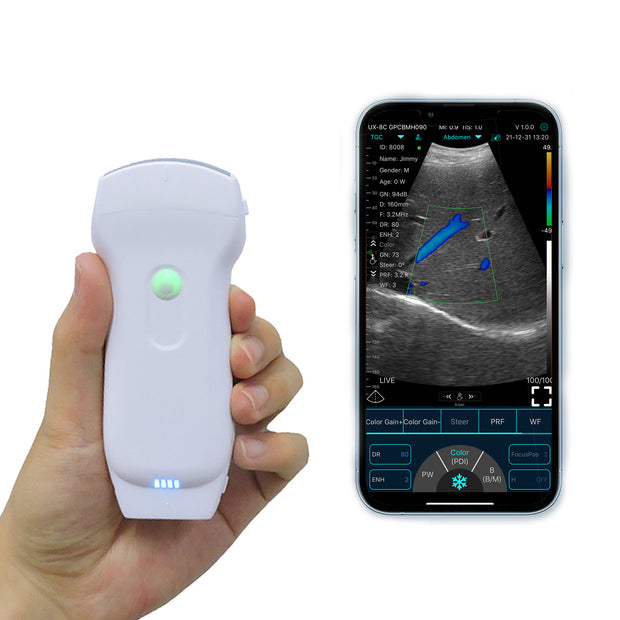

Cardiac preset mode on Dolphin C10RL dual-probe multipurpose ultrasound
Dolphin C10RL Dual-Probe Ultrasound
Dolphin C10RL Dual-Probe Ultrasound
3-in-1 multipurpose Dolphin C10RL ultrasound
Portable Dolphin C10RL ultrasound probe
Dolphin C10RL dual-head ultrasound probe with WiFi
Dolphin C10RL wireless ultrasound
Lightweight Dolphin C10RL ultrasound scanner next to iPhone
Cardiac preset mode on Dolphin C10RL dual-probe multipurpose ultrasound

Dolphin Ultrasound - Dualfin Dual-Probes Multipurpose Ultrasound Convex +Linear+ Cardiac Probe

$4,499.00 $3,899.00 Save $600.00
9 in stock

The Dolphin Ultrasound - Dualfin is a combination of two probes, one side of the convex array probe and the other side of the line array probe, and the convex array probe has a cardiac preset function. The Dolphin - Dualfin is a wireless ultrasound scanner with dual probe, 3 in 1 multipurpose handheld convex+linear+cardiac whole body ultrasound scan.

Product specs:

Probe  Wireless dual head convex+linear probe
Elements Dual 128
Frequency 3.5/5.0mhz, 7.5/10mhz,2.5/5.0mhz
Depth 90-305mm, 20-100mm, 90-160mm
Preset 16+

Abdomen, GYN, OB, Cardiac, Urology, Kidney, Lung, User1, User2
Thyroid, Small parts, pediatrics, Vascular, Carotid, Breast, Msk, Nerve, User1, User2
Host Tablet, Smart phone, PC
Connection WiFi&USB
Software Adjustable Parameters GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
Measurement

B: Length, Area/Circumference, Angle, Trace, Distance GA(CRL,BPD,GS,FL,HC,AC)EFW(BPD,FL)
B+M: Heart rate, Time, Distance, LVID(LVIDd, LVIDs, EF, SV)
B+PW: Velocity, Heart rate(2), S/D, Depth.
Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL
Playback Frames 100, 200, 500, 1000 optional
Display Mode B, B+B, B/M, Color, PW, PDI, B+Color+PW
Image Gray Scale 256 level
WiFi Type Built-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps
Channel 64
Frame 24f/s
Gain 40-110Db
Language Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Power by built-in Lithium battery
Battery Replaceable Yes  (by engineer)
Battery Last 3hours (Working time), 12 hours(Stand by time)
Charger USB Charger, wireless charger
Waterproof Grade IPX5

Advanced Ultrasound Technology for a Healthier Future

10RL Dual-probes

Multipurpose Ultrasound Features

  • Dual head convex + linear + cardiac preset 3 in 1 probe
  • Only 120g, smaller than iphone, easy to carry
  • B, B+B, B/M, Color, PW, PDI, B+Color+PW mode
  • WiFi&USB, 2 connection methods, support working while charging

Convex+linear probe

  • Hemodynamic monitoring to confirm whether blood vessels are blocked
  • The urinary system can be observed, including the kidneys, ureters, bladder and urethra
  • Assist doctors to find the location of ascites and prescribe appropriate medicine.
  • Provides a clear diagnosis, including ganglion cysts, joint effusions, rheumatic diseases
Dolphin Ultrasound Convex Probe + Cardiac reset

Diagnosis in a multitude of clinical environments

Cardiology

Emergency Medicine

Primary Care

Happy Customers!

For someone with limited tech expertise like myself, the Dolphin’s intuitive interface has made it easy to integrate into my daily practice.

Chad Turner, Chiropractor, Providence, RI

The Dolphin's ability to connect and share data with our systems seamlessly has made patient record management a breeze.

Derek Liu, MD, Kansas City, MO

Crystal-clear imaging ensures accurate diagnostics for every scan

Crystal-clear imaging ensures accurate diagnostics for every scan
ultrasound image
Ultrasound scan
Rich Text Section

Make bedside ultrasound machine available to everyone

We believe that everyone should have access to medical imaging. We are dedicated to providing affordable, high-quality ultrasound machines to clinicians, physicians, students, and healthcare organizations.
